Vehicle camera technology has become central to modern driver assistance and autonomous systems because cameras provide the visual input needed for lane detection, object recognition, traffic sign reading, parking assistance, and driver monitoring. In today’s vehicles, cameras are no longer passive recording devices; they function as core perception sensors inside automotive vision systems.
Today, they are considered the “eyes” of modern vehicles, playing a central role in Advanced Driver Assistance Systems (ADAS) and autonomous driving by capturing surroundings, detecting obstacles, and supporting safer navigation. These cameras continuously gather visual data, which is processed using image processing and computer vision techniques to improve driving safety, accuracy, and overall user convenience.
Modern vehicular camera systems are not limited to simple recording; they are integrated with advanced hardware and software components such as image sensors, processors, and AI-based analytics to enable intelligent decision-making. They are used across multiple applications, including parking assistance, lane detection, driver monitoring, and collision avoidance, forming a key part of intelligent transportation systems.
Also read: Autonomous Vehicle Mapping, HD Maps, AI-Powered Localization and the Emerging Technology Landscape
With the rise of autonomous and connected vehicles, these cameras have become essential for real-time environment perception, enabling vehicles to interpret road conditions, monitor driver behavior, and interact with other systems, thereby transforming overall driving safety and efficiency.
Types of Vehicle Camera Technology

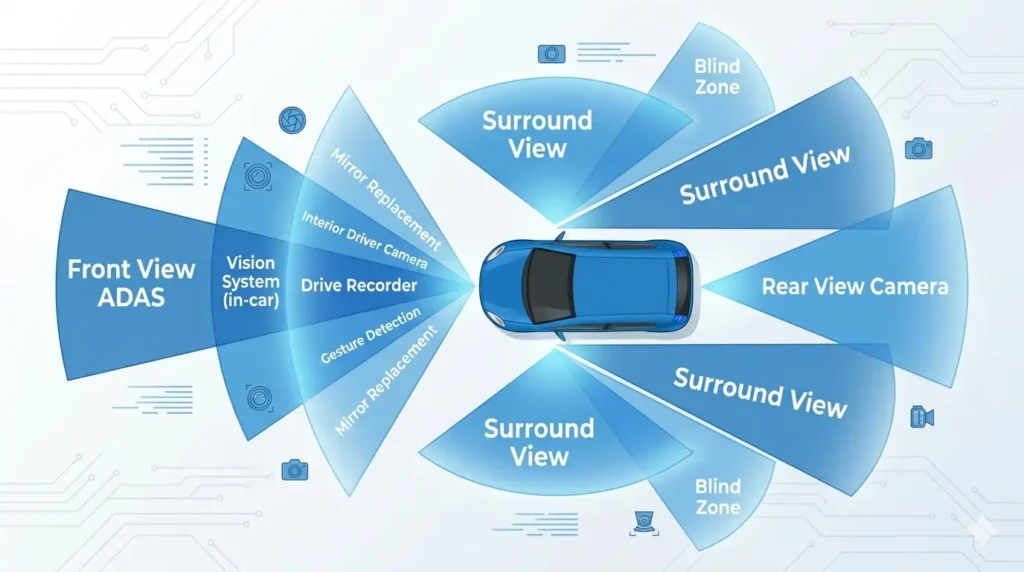

In modern vehicles, multiple camera systems are installed to sense different directions both inside and outside the vehicle, supporting safer driving and improved situational awareness. There are three main types of cameras used in vehicles: sensing cameras, surround view cameras, and driver monitoring cameras.
Sensing Cameras (also known as forward-facing cameras)
These are typically mounted behind the windshield near the rearview mirror or integrated within it, giving them a clear, wide field of view of the road ahead. This position not only protects the camera from environmental damage but also benefits from windshield wipers, which help maintain visibility in rain or dust.
Most of these cameras operate in the visible light spectrum, similar to the human eye, enabling them to capture detailed road information such as traffic signs, lane markings, and surrounding vehicles. Advanced systems also support features like automatic high-beam control by detecting oncoming headlights and adjusting illumination accordingly, while maintaining high dynamic range to handle varying light conditions, especially at night.
These cameras play a crucial role in interpreting the driving environment. They enable functions such as traffic sign recognition, lane detection, and object recognition for vehicles, pedestrians, and cyclists. High resolution and fast exposure times are essential to accurately capture fast-moving scenes without motion blur.
In more advanced setups, stereo camera systems can generate depth maps, allowing the vehicle to estimate distances and identify drivable space. While visible-light cameras may struggle in very low-light conditions, infrared-based forward cameras can complement them by detecting heat signatures of objects like pedestrians and animals, further enhancing safety in challenging environments.
Internal configuration of sensing cameras
An image sensor refers to a sensor that converts the light entering through the lens of a camera into electrical signals. The data sensed as signals are processed through an SoC (System on a chip). In addition, these cameras are equipped with a microcomputer to issue control commands to an external ECU.
System configuration of sensing cameras
Sensing cameras consist of several key components that work together to capture, process, and transmit visual information. At the core is the image sensor, which captures incoming light through the camera lens and converts it into electrical signals. These signals are then processed by a System-on-Chip (SoC), which handles complex data processing tasks. A microcontroller (MCU) provides control instructions such as applying the brake and turning the steering wheel to an external ECU. Communication with other systems is enabled through a transceiver, while memory components play a crucial role in data handling: DDR memory acts as a buffer during processing, and flash memory stores control software and sensor data. Additionally, a DC/DC converter ensures that the voltage supplied from the vehicle’s lead battery is converted to suitable levels required by each electronic component.
Driver monitoring cameras
Driver monitoring cameras are in-cabin imaging devices that continuously capture visual data of the driver to assess their state in real time. These cameras track key features such as eye movement, head orientation, and facial expressions to determine whether the driver is attentive or distracted. By analyzing this visual input, the camera enables detection of behaviors like drowsiness, gaze deviation, and fatigue, forming the basis for driver awareness evaluation.
These cameras are designed to function reliably under varying lighting conditions, often incorporating technologies such as infrared imaging, high dynamic range (HDR), and LED flicker mitigation to maintain image quality. This ensures accurate monitoring both during daytime and low-light or night driving. The ability of the camera to capture clear and consistent visual data is critical, as it directly impacts the effectiveness of real-time driver behavior analysis and safety-related decision-making.
- Internal configuration of driver monitoring cameras
Note: The internal architecture of driver monitoring cameras is essentially the same as that of sensing cameras, consisting of components such as the image sensor, SoC, and microcontroller for data processing and control functions. (See: Figure 2)
- System configuration of driver monitoring cameras
Note: The system configuration of driver monitoring cameras is largely identical to that of sensing cameras, as both employ similar core components such as the image sensor, SoC, MCU, memory modules, transceiver, and power management units for image capture, processing, communication, and control. (See: Figure 3)
Surround view cameras (also called 360° or bird’s-eye view cameras)
A 360 vehicle camera system, also called a surround view camera system, combines multiple wide-angle cameras around the vehicle to generate a top-down view of the surroundings. This improves parking, tight-space maneuvering, blind-spot awareness, and low-speed safety. Surround-view systems are now a core part of vehicle vision systems and ADAS camera deployments.
They are commonly integrated as part of advanced driver assistance systems (ADAS) and contribute to safer navigation by helping drivers detect nearby obstacles, pedestrians, and curbs. The system is particularly useful in urban environments where space constraints and complex surroundings demand precise vehicle control.
From a system perspective, surround view solutions use multiple wide-angle cameras, typically mounted at the front grille, rear, and side mirrors to capture overlapping views of the surroundings. Each camera produces distorted fisheye images, which are transmitted to a central processing unit (usually an ECU or SoC).
The system applies several image processing steps, including distortion correction, perspective transformation, and image stitching, to generate a seamless bird’s-eye (top-down) view. Accurate calibration and synchronization across all cameras are critical to ensure proper alignment and avoid visual artifacts. The processed output is then displayed in real time on the vehicle’s infotainment screen, often with dynamic guidelines or object overlays to further assist the driver.
Internal configuration of driver monitoring cameras
Driver Monitoring Systems use interior-facing cameras to track eye movement, head position, facial cues, and alertness. This makes them an important category of ADAS cameras, especially in vehicles that need real-time driver attention monitoring and drowsiness detection.
Acquired image data are integrated (synthesized) into one omnidirectional image by another ECU (surround view ECU, etc.).
System configuration of surround view cameras
A camera ECU and surround view ECU are used to make up a surround view camera. Unlike other types of camera modules, multiple camera units are mounted on a vehicle to make up the surround view camera. Therefore, transceiver circuits must communicate larger amounts of data. An FPGA is used to integrate the acquired image data into one, where image processing is performed at high speed.
Other configurations are the same as those of sensing cameras and driver monitoring cameras.
Vehicle Camera Technology and Its Applications
Vehicular camera technology is used to capture and interpret visual information from both the external environment and the interior of a vehicle. They support a wide range of applications including driving assistance, parking support, driver and occupant monitoring, and environment perception. By continuously processing image data, these cameras help improve situational awareness and enable safer vehicle operation.
In addition, vehicular cameras are applied in recording and surveillance functions such as dashcams and security monitoring, as well as in advanced systems for automation and navigation. Their integration with processing units and intelligent algorithms allows vehicles to detect objects, understand road conditions, and respond appropriately in real time, making them an essential component of modern automotive systems.
ADAS Cameras and Vehicle Vision Systems
Modern vehicles rely heavily on cameras to support critical driver assistance features, and these ADAS cameras are some of the most important sensors in the entire system. An ADAS camera is a vehicle camera used by advanced driver assistance systems to interpret the driving environment. These cameras help detect lane markings, vehicles, pedestrians, road signs, and obstacles, making them essential for features such as lane keeping, collision avoidance, and emergency braking.
Also read: ADAS Evolution: SAE Levels of Driving Automation, Sensor Fusion, and Software-Defined Vehicles
For these features to work correctly, the camera must see the road exactly as the manufacturer intended, which is why proper calibration is so important. This article breaks down how ADAS cameras function, where they’re located, and the specific reasons calibration is essential for accurate, dependable performance in today’s safety-driven vehicles.
ADAS is the term used in the auto industry to describe automotive safety features that use advanced technology including cameras and other sensors to provide safety warnings and, in some cases, even assist the driver in braking or steering to avoid dangerous situations for drivers, passengers, and pedestrians.
ADAS functionality is made possible by environmental sensors mounted to the vehicle, including radar, LiDAR, ultrasonic, and camera image sensor data. As data is being collected, the vehicle’s electronic control unit (ECU) analyzes it together. The term for the fusing of all types of ADAS sensor data is sensor fusion. Analyzing the fused data allows the ECU to interpret what’s happening and initiate ADAS’ active safety systems. ADAS capabilities include warnings (audible, visual, and tactile), automatic braking, and in some cases, automatic steering control.
ADAS cameras, an important function to advanced driver assistance systems, are automotive camera sensors, crucial for assisting drivers with tasks like lane-keeping and collision avoidance. These ADAS cameras vary in positioning based on the vehicle’s design and features, including forward-, side-, and rear-mounted options. The versatility and functionality of ADAS cameras make them essential components in modern vehicles for enhanced driver safety and assistance.
Forward-facing cameras are the most common type of ADAS camera, while side and rear-mounted cameras are growing in popularity. Forward-facing ADAS cameras are mounted to the inside of the vehicle’s windshield, near the rear-view mirror. A range of ADAS functions supported by front-facing cameras is illustrated in the figure below:
Rear and side-mounted camera systems are becoming more common. These sensors provide data for several ADAS systems, including the following applications:
ADAS cameras are not limited to above applications, they can also be used inside the vehicle to support Driver Attention Warning and Driver Monitoring Systems (DMS). Interior-facing cameras track the driver’s head position, eye movements, and facial cues to assess alertness and detect signs of drowsiness or distraction. When reduced attention is identified, the system can issue timely warnings to help prevent potential accidents. By continuously analyzing driver behavior, these camera-based systems enhance overall safety and complement other ADAS functionalities.
Further, Automotive night vision systems use camera-based technologies such as infrared or thermal imaging to improve a driver’s ability to see in low-light or dark conditions. These cameras capture information beyond the visible spectrum by detecting heat signatures or reflected infrared light, enabling the system to identify objects that may not be visible with standard headlights. The captured data is processed electronically and displayed to the driver, providing a clearer view of the road environment ahead.
These systems are designed to enhance safety by detecting pedestrians, animals, and other obstacles at a greater distance compared to conventional lighting. Thermal imaging cameras, in particular, can identify heat-emitting objects regardless of ambient lighting conditions, while infrared-based systems rely on emitted or reflected IR light to highlight objects. Overall, camera-based night vision extends visibility range and supports early hazard detection, reducing the risk of accidents during nighttime driving.
Dashboard Cameras
Due to the current increased traffic congestion on road networks, road safety is among the biggest concerns to any driver. Dashboard camera or dash cam is slowly and gradually being understood as an invaluable element which not only increases the safety of a drive but also comes in handy in any eventualities of lawsuits or insurance claims. The key benefits of dashcams are outlined below:
- Accurate Incident Recording: Perhaps the greatest strength of any dashcam is that it can capture video of any accident while driving on the road. In case of an accident, the footage can help when compiling a report with a car insurance company. This can reduce cases of fraud and support a case when one is accused of the vice.
- Protection from False Claims: Dash cams are useful to protect from false claims or faked accidents. It eliminates any possibility of someone accusing someone of wrongdoing which is especially important in case of third-party accidents where third party car insurance may apply.
- Monitoring Driver Behavior: A fleet owner who wants to keep an eye on a vehicle or a parent with a teenager learning how to drive then a dash cam is a perfect asset in correcting improper driving behavior. This may help reduce cases of recklessness when on the road and in turn promote better driving.
- Parking Mode: Dashcams with parking mode enhance vehicle security by continuing to monitor the surroundings even when the engine is turned off. Using low-power operation, these systems rely on built-in sensors such as G-force or motion detectors to automatically activate recording when a disturbance, like a bump or nearby movement, is detected. They capture short video clips of such events, ensuring incidents like minor collisions, vandalism, or suspicious activity are documented. This feature is particularly useful for vehicles parked in public or roadside areas, providing continuous protection without significantly draining the vehicle’s battery.
High-Definition Mapping (HD Mapping)
High-Definition (HD) mapping is a foundational technology for autonomous vehicles that goes far beyond traditional GPS-based navigation. Instead of providing simple route guidance, HD maps deliver a highly detailed, layered representation of the driving environment, including lane boundaries, road geometry, traffic signs, and even dynamic conditions like construction zones or accidents. This rich environmental model enables autonomous vehicles to precisely localize themselves and navigate complex road scenarios. The system works in combination with advanced vehicle technologies such as sensor fusion, perception algorithms, and decision-making systems to ensure safe and accurate driving. Vehicle cameras play a critical role here as they capture real-world visual data that helps identify objects, interpret road features, and validate map information, acting as a key input for perception and navigation.
HD maps are built using multiple components such as geometric data (road layout), semantic data (traffic rules, signs, speed limits), and dynamic updates (real-time road and environmental conditions). To generate and maintain these maps, autonomous vehicles rely on a combination of sensors, including LiDAR, radar, GPS/IMU, and cameras. Cameras provide the visual layer necessary for object recognition and scene understanding, enabling detection of lanes, signals, pedestrians, and other vehicles. These inputs are continuously processed and integrated to update maps in real time using techniques like SLAM (Simultaneous Localization and Mapping) and mobile mapping systems. The ongoing advancements in camera and sensing technologies are improving the accuracy and reliability of HD mapping for safe and intelligent mobility.
Digital Side Mirrors
Digital side mirrors (also known as camera mirrors or digital car mirrors) replace conventional reflective mirrors with camera-based systems that capture the vehicle’s surroundings and display the image on interior screens. Instead of relying on a physical mirror surface, cameras mounted on the exterior of the vehicle stream real-time video to displays inside the cabin. This transformation turns a traditionally mechanical component into part of a vehicle’s digital ecosystem, integrating with modern electronic systems and supporting advanced vehicle design approaches.
These systems provide several advantages compared to traditional mirrors. By using compact cameras instead of bulky mirror housings, they help reduce aerodynamic drag and improve overall efficiency. At the same time, camera-based systems enhance safety by offering improved visibility and supporting integration with advanced driver assistance features. As the automotive industry moves toward smarter and more connected vehicles, digital mirrors are increasingly seen as a forward-looking solution that combines design efficiency with enhanced functionality.
Role of Embedded Cameras at Different Levels of Autonomous Driving
Embedded cameras are the foundation of perception across all levels of autonomous driving, as they provide the visual intelligence required for vehicles to understand and interact with their environment. They continuously capture raw visual data that AI algorithms use to detect traffic signs, interpret signals, recognize pedestrians, and track surrounding vehicles. Unlike other sensors, cameras offer rich contextual information such as lane markings, road textures, and object classification which is essential for real-time decision-making. At lower levels of automation (Level 0–2), cameras primarily support driver-assistance features like lane keeping and adaptive cruise control, while also enabling driver monitoring to ensure attention and safety.
As automation progresses toward higher levels (Level 3–5), the role of embedded cameras expands significantly, becoming central to full environmental awareness and autonomous navigation. Multiple camera types such as forward-facing, surround-view, and in-cabin cameras work together to provide synchronized, high-resolution vision with improved reliability under varying lighting and dynamic conditions.
These cameras must deliver features like HDR, low latency, and precise synchronization to maintain consistent perception in complex driving scenarios. Ultimately, at full autonomy, cameras are no longer just assistive components but critical vision systems that enable vehicles to operate independently by continuously interpreting complex road environments and making driving decisions without human intervention.
Additionally, embedded cameras complement other sensors like radar and LiDAR by supplying the detailed visual context those sensors cannot provide. While radar and LiDAR measure distance and speed, cameras enable semantic understanding such as distinguishing between objects, identifying road boundaries, and interpreting complex scenes.
This makes cameras a critical layer in perception systems, supporting functions like hazard tracking, close-range maneuvering, and interior monitoring. As autonomy advances, the demand on cameras increases, requiring higher resolution, better dynamic range, and consistent imaging performance under rapidly changing real-world conditions.
Vehicle camera technology is already a patent-active space. Public RPX coverage shows litigation involving rear camera systems for vehicles, brake-light camera campaigns, and in-vehicle camera and sensor systems used to monitor a driver’s state. Public patent records also show vehicle camera systems that include communication capabilities, which supports a short IP landscape discussion inside this article.
IP Landscape in Vehicle Camera Technology
The global automotive camera market size was valued at $10.73 billion in 2025 and is projected to grow from USD 11.87 billion in 2026 to USD 27.68 billion by 2034, exhibiting a CAGR of 11.20% over the forecast period. Europe dominated the global market with a share of 32.90% in 2025.
According to public databases, there are over 85k+ patents related to automotive vision systems.
Read our Ebook: Intellectual Property Frameworks for Autonomous Vehicle Innovation
Patent Filing Trend
The figure given below depicts the patent filing trend for vehicular cameras. As can be seen in the chart below, there has been a constant fall in patent filings between 2019-2025.
Top Assignees
The figure given below depicts the patent set’s assignee distribution. This distribution is spread out, and only the top ten assignees are shown in the chart below. Toyota Motor lead the list with 5954 patent families, followed by Honda Motor with 3076 patent families and Denso with 2849 patent families.
Top Jurisdictions
The chart provided below depicts the top ten automotive vision systems jurisdictions with the most patents. US tops the list with 42328 patent families, followed by the China with 38070 patent families.
CPC Distribution
The top ten CPC (Cooperative Patent Classification) subclasses distribution of the vehicular cameras patents is dominated by the sub-class B60W.
Future of Vehicle Camera Technology
- AI-Driven Camera & Surveillance Systems: AI is becoming the backbone of future vehicle camera systems, enabling real-time object detection, facial recognition, and behavioral analysis. These systems go beyond simple recording by actively identifying threats, unsafe driving patterns, and environmental hazards, allowing proactive safety interventions. For example, AI-powered platforms can detect driver drowsiness, monitor surroundings, and trigger alerts or automated responses, significantly improving both safety and efficiency. This trend highlights the shift from passive imaging to intelligent perception systems where cameras act as decision-making sensors rather than just visual tools.
- High-Resolution & HDR Imaging Cameras: Automotive cameras are rapidly evolving toward ultra-high resolution and high dynamic range (HDR) capabilities to capture clearer and more detailed images in complex lighting environments. These improvements allow cameras to handle extreme contrasts such as bright sunlight, tunnels, and nighttime glare, ensuring consistent perception performance. High-resolution sensors also enable better object classification and long-range detection, which are critical for autonomous driving and advanced driver assistance systems.
- Camera Miniaturization & Design Integration: Automotive camera modules are becoming smaller, lighter, and more seamlessly integrated into vehicle design without compromising performance. Advances in semiconductor packaging and optics allow cameras to be embedded into mirrors, bumpers, dashboards, and even hidden within body panels. This enables better aesthetics, reduced aerodynamic drag, and more flexible placement for optimal field of view. The trend also supports the increasing number of cameras per vehicle, making it feasible to deploy multiple sensors without significantly affecting vehicle design or cost.
Why Lumenci for Automotive Vision Systems and Camera Innovation
Modern vehicle camera technology sits at the intersection of optics, semiconductors, embedded processing, artificial intelligence, and vehicle safety systems. As camera-based perception becomes increasingly central to ADAS, driver monitoring systems, and autonomous driving platforms, understanding how these technologies evolve is becoming more important for both engineering and business teams.
Lumenci helps organizations navigate the rapidly evolving landscape of automotive vision systems by combining technical expertise with technology intelligence. Through patent landscape studies, competitive benchmarking, market analysis, and technology trend assessments, Lumenci helps stakeholders understand where innovation is occurring across ADAS cameras, 360-degree vehicle camera systems, driver monitoring systems, image sensors, and next-generation vehicle vision platforms.
This multidisciplinary approach enables companies to make more informed decisions around technology investments, product strategy, partnerships, and long-term innovation planning in the automotive sector. Contact us.
Conclusion
Vehicular cameras have moved far beyond simple recording devices and are now central to how modern vehicles perceive and interact with their environment. Across forward-facing, driver monitoring, and surround-view systems, cameras continuously capture and process visual data to enable functions such as lane detection, traffic sign recognition, parking assistance, collision avoidance, and driver behavior analysis. Their integration with processing units and intelligent algorithms allows vehicles to interpret real-world conditions in real time, while additional applications like dashcams, HD mapping, and digital side mirrors further expand their role in safety, convenience, and vehicle design.
From an operational perspective, cameras provide the core visual intelligence needed for both driver assistance and higher levels of vehicle automation. They deliver detailed contextual understanding such as road structure, object classification, and driver state which is essential for accurate and timely decision-making.
As systems become more advanced, multiple cameras work together to offer synchronized, high-resolution views of both the vehicle’s surroundings and interior, improving reliability across diverse and dynamic driving conditions. This makes cameras not just supportive components, but foundational elements of modern vehicle perception systems.
Looking ahead, the trajectory of vehicular cameras reflects a clear shift toward intelligent, software-driven vision systems. Advances in AI, imaging quality, and hardware integration are enabling cameras to move from passive observation to active interpretation and response. With continued improvements in resolution, dynamic range, and compact design, cameras are expected to become even more deeply embedded across vehicle architectures, supporting safer, more efficient, and increasingly autonomous mobility.
Tesla has transitioned its vehicles from using radar and ultrasonic sensors to a camera-only system called Tesla Vision, which relies on cameras and AI to understand the surrounding environment. Starting with Model 3 and Model Y and later extending to other models, Tesla removed additional sensors and replaced them with vision-based processing to handle features like Autopilot and Full Self-Driving.
The company claims this approach improves object detection and spatial awareness while maintaining safety performance, although some features like parking assistance were temporarily limited during the transition and later restored through software updates.
Frequently Asked Questions
What is an ADAS camera?
An ADAS camera is a vehicle camera used by advanced driver assistance systems to detect lanes, vehicles, pedestrians, signs, and obstacles.
lanes, vehicles, What is a 360 vehicle camera system? , signs, and obstacles. What is a 360 vehicle camera system?
A 360 vehicle camera system uses multiple exterior cameras to create a surround or bird’s-eye view of the vehicle’s immediate environment.
What are driver monitoring systems?
Driver Monitoring Systems use interior-facing cameras to observe driver attention, eye movement, head position, and fatigue-related behavior.
What is the difference between ADAS cameras and surround view cameras?
ADAS cameras are used for driving assistance functions like lane keeping and collision avoidance, while surround view cameras are primarily used for parking and low-speed maneuvering.
