Memory Management in OS: Virtual Memory Translation, TLB Hit and Miss, and Address Mapping Explained

Reference: 1,2

Key Components of Virtual Memory Translation

Memory Management Unit (MMU): The MMU is a hardware component within the CPU responsible for translating virtual addresses into physical addresses. Every memory access generated by the processor passes through the MMU, making it a central element of operating system memory management.

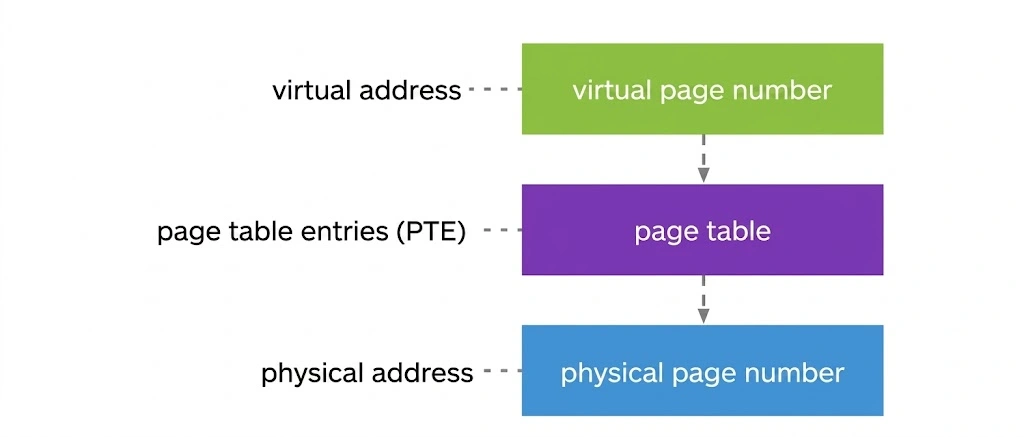

Page Tables: A page table is a data structure maintained by the operating system that stores the mapping between virtual pages and physical pages. It contains many Page Table Entries (PTEs), and each PTE tells the system where a particular virtual page is located in physical RAM.

Page Table Entries (PTEs): A PTE is a single entry inside the page table that stores the mapping between a Virtual Page Number (VPN) and a Physical Page Number (PPN).

Translation Lookaside Buffer (TLB): It is the cache in the MMU. TLB includes multiple page table entries that store the most recent translations between VPN and PPN for speed. Because the TLB is part of the MMU, the TLB lives inside the CPU package. This is why TLB is faster than main memory. Typically, access times for a TLB are ~10 ns, where main memory access times are around 100 ns.

Page table walk: A page table walk is the process the MMU performs when a required translation is not found in the TLB. During a walk, the MMU reads the page table from main memory step-by-step to find the PTE that corresponds to the Virtual Page Number.

Reference: 1,2

Address Translation with a TLB Hit

When the processor needs to access memory, it starts with a virtual address. This address must be converted into a physical address, and the Memory Management Unit (MMU) performs this translation. Here is the step-by-step translation process:

• A program issues a load/store instruction, then the CPU generates a virtual address (VA), and then this VA is sent to the MMU.
• The MMU always breaks the virtual address into two parts: (1) Virtual Page Number (VPN), (2) Page Offset (The page offset is never translated.)
• The MMU immediately forwards the offset to the physical address output (Offset does not change in translation)
• The MMU now takes the VPN and looks it up inside the Translation Lookaside Buffer (TLB).
• If the TLB already has a matching entry for the VPN, this is a TLB hit
• MMU instantly retrieves the Physical Page Number (PPN)
• No page-table lookup is required
• No memory access is required for translation.

Since both components, PPN and Offset, are now available, the MMU simply concatenates them.

This fast-path translation significantly reduces memory access latency and is critical for high-performance systems.

Reference: 1,2,3

Address Translation with a TLB Miss

When the MMU looks up the Virtual Page Number (VPN) in the TLB and no matching entry is found, this condition is called a TLB miss. In this case, the MMU must fetch the required mapping from memory, which is slower compared to a TLB hit. Here is the step-by-step process:

• The virtual address arrives at the MMU. The MMU splits it into Virtual Page Number (VPN) and Page Offset (offset is never translated). MMU forwards the offset to the physical address output (Offset does not change in translation)
• The MMU looks up the VPN in the TLB. In this case, the TLB does not contain a valid entry; this is called a TLB miss.
• Since the translation is not cached, the MMU now reaches out to main memory to retrieve the corresponding Page Table Entry (PTE) data. This step involves higher latency because memory access is slower than TLB lookup.
• The MMU uses the VPN to locate the correct page-table entry data.
• Once the MMU retrieves the PTE data from memory, the Physical Page Number (PPN) becomes available.
• The MMU now inserts this new VPN to PPN mapping into the TLB so that future accesses will be faster.
• If the TLB is already full, the least recently used (LRU) entry is evicted to make space for the new one.
• Finally, the MMU concatenates the PPN (from the PTE) and the offset (passed through earlier) to form the complete physical address.

Although slower than a TLB hit, this mechanism ensures correctness and maintains the consistency of address translation.

Reference: 1,2

Benefits of Virtual Memory Management

Effective virtual memory management is essential for system stability, performance, and scalability. By separating virtual memory from physical RAM, the operating system can provide each process with an isolated address space while efficiently reusing physical resources in the background.

The major benefits include:

• Process isolation: prevents applications from reading or overwriting each other’s memory
• Improved security: restricts access to protected memory pages
• Efficient RAM utilization: allows flexible page allocation and reuse
• Simplified programming model: applications work with continuous virtual memory
• Virtualization support: enables safe execution of multiple VMs and containers
• Lower access latency: TLB caching accelerates repeated address translation

These mechanisms make memory management one of the most critical functions of any modern operating system.

Why Efficient Memory Translation Matters in Modern Systems

The efficiency of virtual memory address translation directly affects CPU performance. Every load, store, and instruction fetch depends on successful address translation, which means even small inefficiencies in TLB behavior or page table design can significantly increase memory latency.

A TLB hit and miss ratio is therefore one of the most important indicators of system performance. Frequent TLB hits allow the MMU to translate addresses almost instantly, while repeated misses force expensive page table walks that slow down execution.

This becomes even more critical in:

• cloud computing workloads
• virtualization environments
• database systems
• large-scale AI memory pipelines
• operating system kernel scheduling

As workloads continue to scale, efficient address translation virtual memory mechanisms remain central to performance optimization.
